Altech

Lights

Down Lighters/Well Glass

Our LED Downlights and Well Glass Light fixtures are extensively used by our customers to illuminate indoor office spaces, commercial warehouses, and residential apartments. These casting enclosures are available in various shapes, sizes, and specifications at industry leading prices.

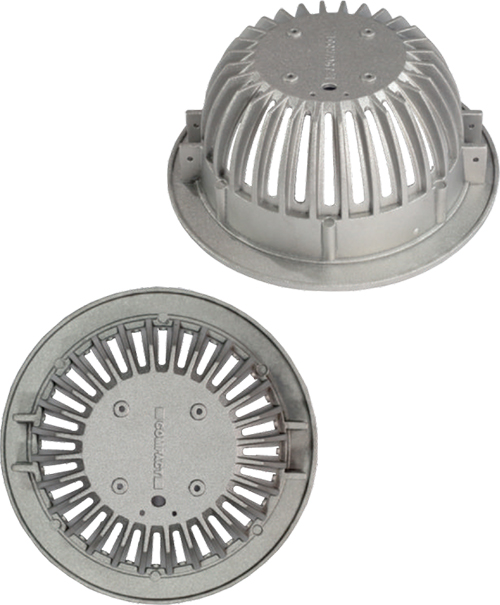

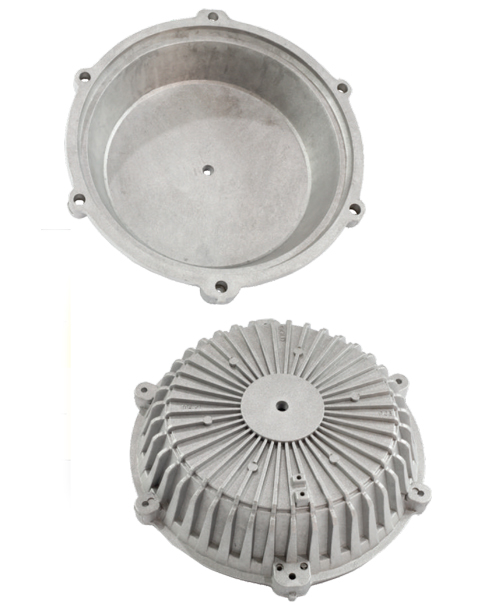

LED Down Lighters

	Overall Dimensions	PCB Area Dimensions
10-15 watt	Dia 130mm	Dia 90mm
10-15 watt	Height 60mm	--
16-24 watt	Dia 180mm	Dia 130mm
16-24 watt	Height 80mm	--

LED Down Lighters

	Overall Dimensions	PCB Area Dimensions
10-15 watt	Dia 98 mm	Dia 52mm
10-15 watt	Height 51mm	--
15-20 watt	Dia 128 mm	Dia 76mm
15-20 watt	Height 51mm	--
21-30 watt	Dia 200mm	Dia 150mm
21-30 watt	Height 55mm	--

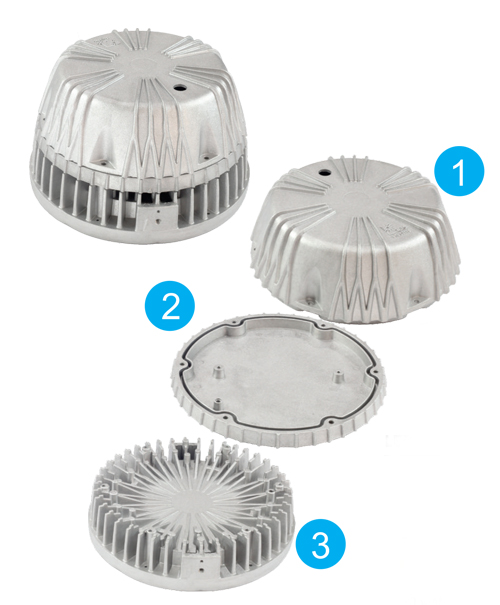

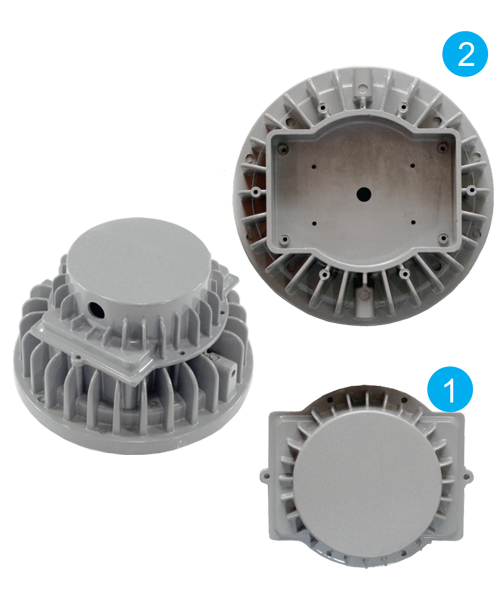

LED Well-Glass

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions
36 watt	Dia 175mm	Dia 130mm	Dia 110mm
36 watt	Height 110mm	--	Height 60mm
60 watt	Dia 220mm	Dia 160mm	Dia 150mm
60 watt	Height 130mm	--	Height 65mm

LED Well-Glass

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions
24 watt	Dia 164 mm	Dia 125mm	Dia 85 mm
24 watt	Height 100mm	--	Height 65 mm

LED Flood Lights & HighBay Lights

We are providing flood lights / high bay lights to some of the most distinguished Lighting companies of India. Our castings for flood lights are suitable to be used in applications from 100 watts to 1000 watts. They are extensively used in high-mast lighting structures as well as for lighting purpose of stadiums and parks across India. These castings are tested to meet IP67 norms as required by our customers.

All Sheet Metal Parts Shown in The Images are Manufactured in House

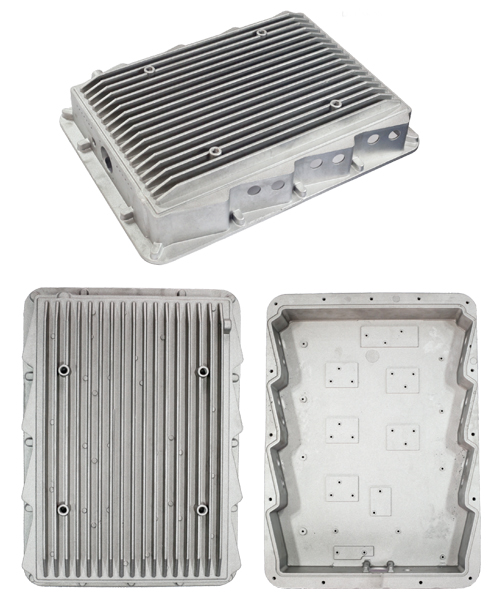

LED Flood Light

	Overall Dimensions	PCB Area Dimensions	Driver Box
200 - 250 watt	Length 500mm	Length 460mm	IP 67 Driver used. No need for separate box
	Width 156mm	Width 120mm
	Height 75mm	--

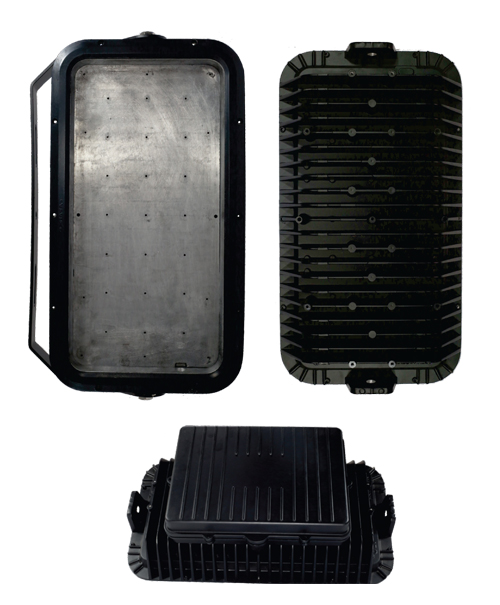

LED Flood Light

	Overall Dimensions	PCB Area Dimensions	Driver Box Dimensions
250 - 350 watt	Length 453mm	Length 393mm	Length 265mm
	Width 250mm	Width 188mm	Width 186 mm
	Height 145mm	--	Height 58mm

LED Flood Light

	Overall Dimensions	PCB Area Dimensions	Driver Box Dimensions
150 - 200 watt	Length 410mm	Length 360mm	IP 67 Driver used. No need for separate box
	Width 295mm	Width 250mm
	Height 85mm	--

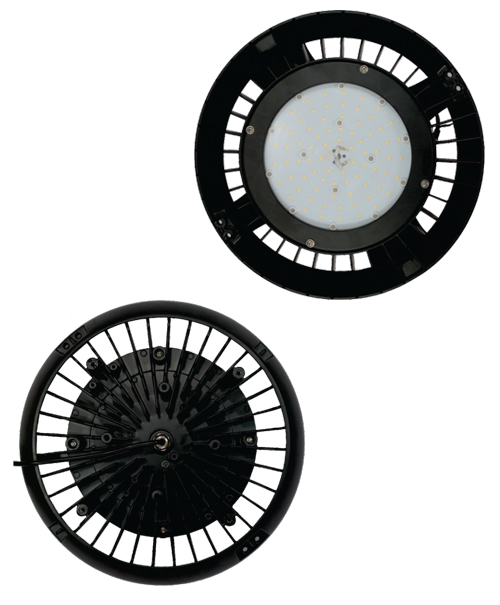

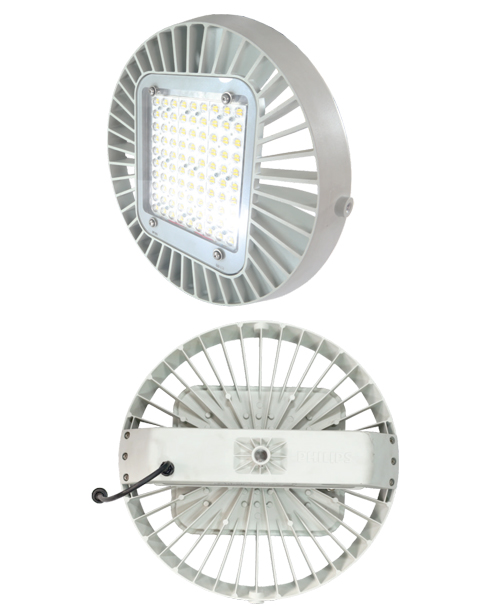

LED HighBay

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions
100 - 150 watt	Dia 450mm	Length 220mm	Length 320mm
	Height 170mm	Width 210mm	Width 80mm
	--	--	Height 55mm

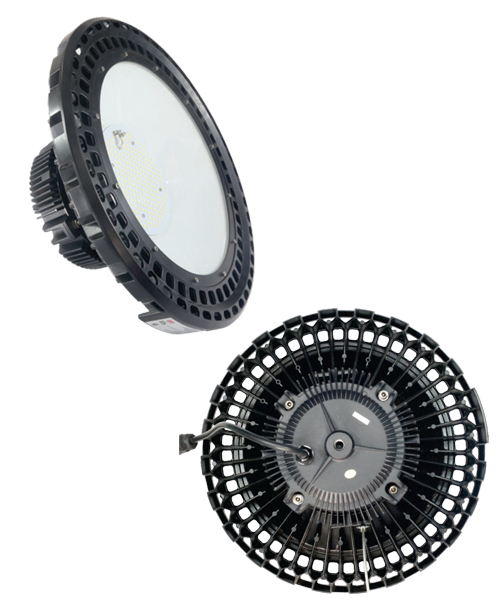

LED HighBay

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions
125 - 175 watt	Dia 390mm	Dia 140mm	Dia 190mm
125 - 175 watt	Height 165mm		Height 70mm

LED HighBay

	Overall Dimensions	PCB Area Dimensions	Driver area
100 - 150 watt	Dia 360mm	Dia 180mm	IP 67 Driver used. No need for separate box
100 - 150 watt	Height 135mm		IP 67 Driver used. No need for separate box

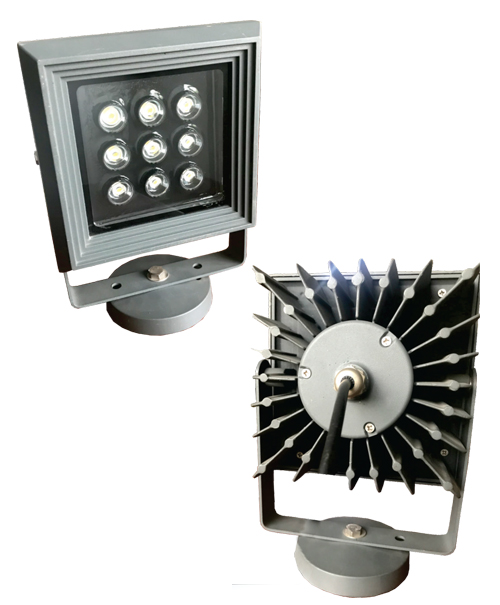

LED Flood Light

	Overall Dimensions	PCB Area Dimensions	Driver Box Dimensions
36 - 45 watt	Length 150mm	Length 110mm	IP 67 Driver used. No need for separate box
	Width 150mm	Width 110mm
	Height 100mm	--

LED Street Lights

We are a prominent manufacturer and supplier of an extensive array of Street Light castings that are primarily used in applications for Solar powered LED Street lights and Outdoor LED Street Lights. These castings are used in illumination of streets in residential areas and major roads and highways. These castings are manufactured using automated die casting machines with aluminum alloy that is spectro tested to ensure good surface finish and porosity free machining.

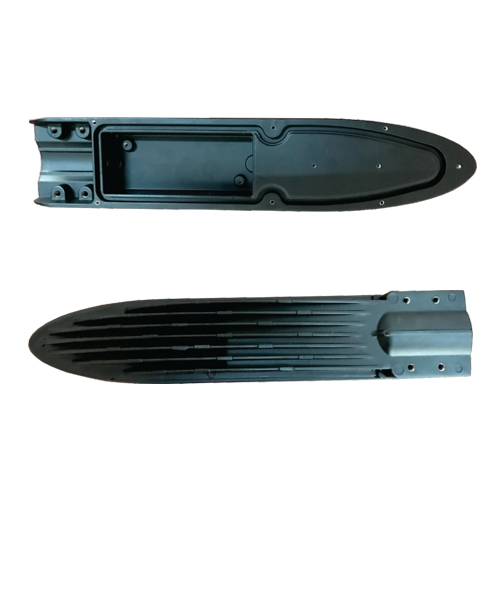

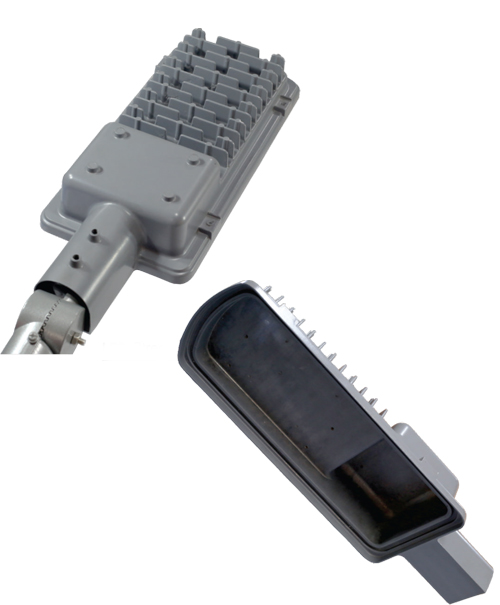

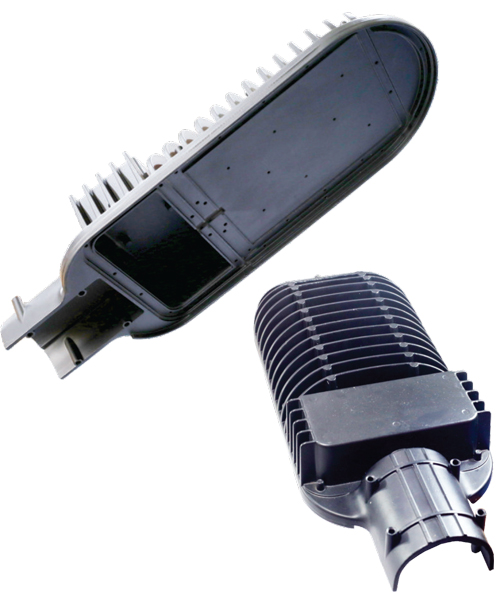

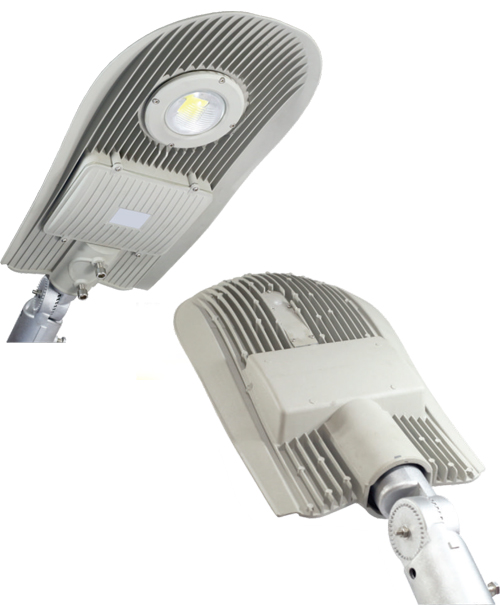

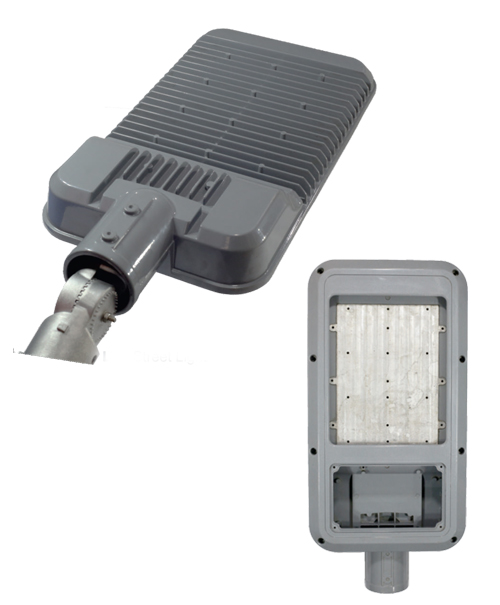

LED Street Light

	Overall Dimensions	Driver area Dimensions	COB Dia	Pipe Dia
60-75 watt	Length 475mm	Length 150mm	Dia 70mm	Dia 45mm
	Width 270mm	Length 150mm	--	--
	Height 70mm	Height 40mm	--	--

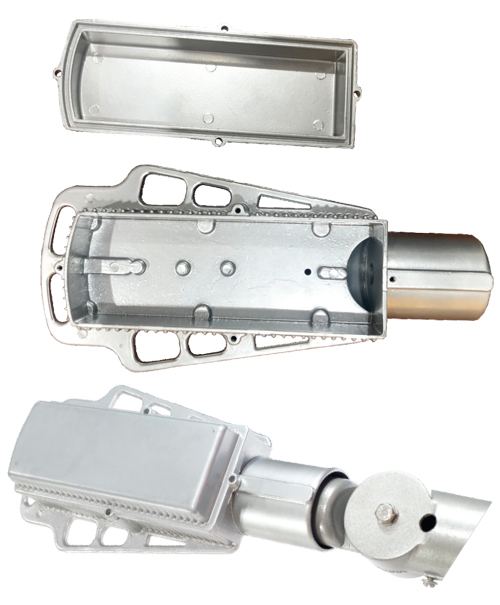

LED Street Light

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions	Pipe Dia
24-36 watt	Length 375mm	Length 145mm	Length 120mm	Dia 50mm
	Width 75mm	Width 50mm	Width 50mm	--
	Height 44mm	--	Height 30mm	--

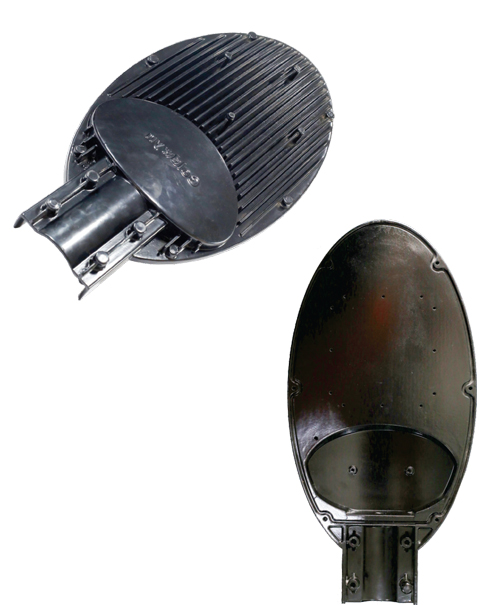

LED Street Light

	Overall Dimensions	Driver area Dimensions	PCB Area Dimensions	Pipe Dia
36-45 watt	Length 395mm	Length 110mm	Length 175mm	Dia 45mm
	Width 145mm	Width 90mm	Width 110mm	--
	Height 60mm	Height 50mm	--	--

LED Street Light

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions	Pipe Dia
24-36 watt	Length 350mm	Length 165mm	Length 130mm	Dia 40mm
	Width 135mm	Width 90mm	Width 95mm	--
	Height 80mm	--	Height 60mm	--

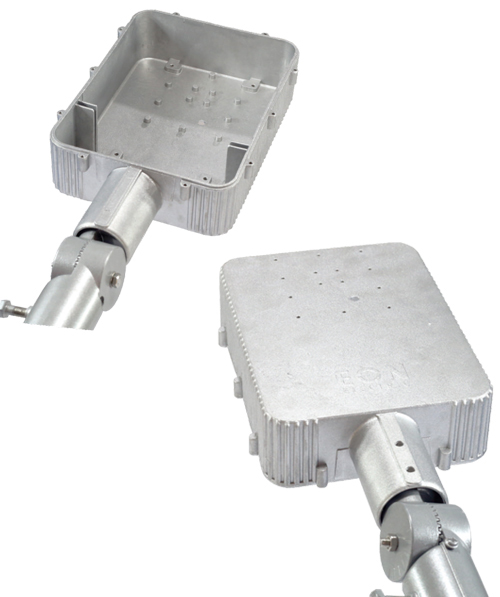

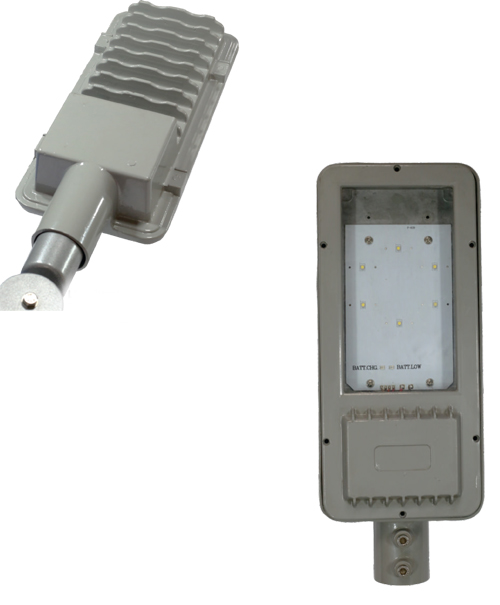

LED Solar Street Light

	Overall Dimensions	Driver area Dimensions	PCB Area Dimensions	Pipe Dia	Battery Area
36 - 60 watt	Length 205mm	Length 150mm	Length 85mm	Dia 40mm	Length150mm
	Width 155mm	Width 50mm	Width 70mm	--	Width145mm
	Height 85mm	Height 85mm	--	--	Height 85mm

LED Street Light

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions	Pipe Dia
60-75 watt	Length 405	Length 200mm	Length 130mm	Dia 60mm
	Width 200mm	Width 165mm	Width 80mm	--
	Height 30mm	--	Height 40mm	--

LED Street Light

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions	Pipe Dia
60-75 watt	Length 460mm	Length 180mm	Length 145mm	Dia 75mm
	Width 170mm	Width 135mm	Width 70mm	--
	Height 60mm	--	Height 50mm	--

LED Street Light

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions	Pipe Dia
24-36 watt	Length 320mm	Length 125mm	Length 90mm	Dia 45mm
	Width 120mm	Width 75mm	Width 80mm	--
	Height 45mm	--	Height 55mm	--

LED Street Light

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions	Pipe Dia
120-150 watt	Length 560mm	Length 250mm	Length 245mm	Dia 65mm
	Width 255mm	Width 200mm	Width 140mm	--
	Height 60mm	--	Height 55mm	--

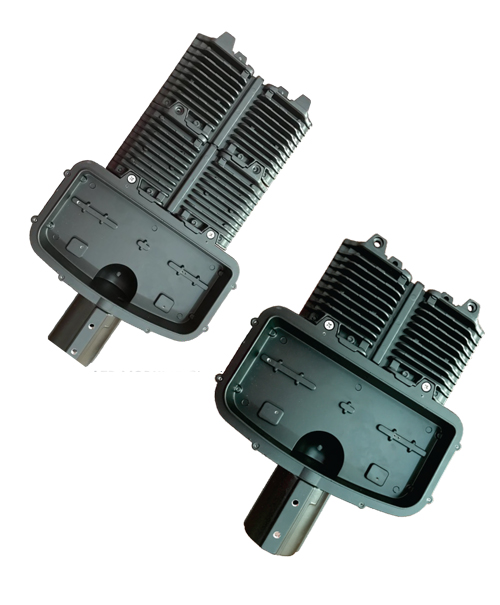

LED Modular Street Light

	Single Module	PCB Area Dimensions (One Module)	Driver area Dimensions	Pipe Dia
45-180 watt	Length 215mm	Length180mm	Length 250mm	Dia 65mm
	Width 115mm	Width 82mm	Width 130mm	--
	Height 25mm	--	Height 69mm	--

LED Street Light

	Overall Dimensions	PCB Area Dimensions	Driver area Dimensions	Pipe Dia
18-24 watt	Length 250	Length 126mm	Length 155mm	Dia 42mm
	Width 115mm	Width 55mm	Width 55mm	--
	Height 50mm	--	Height 42mm	--

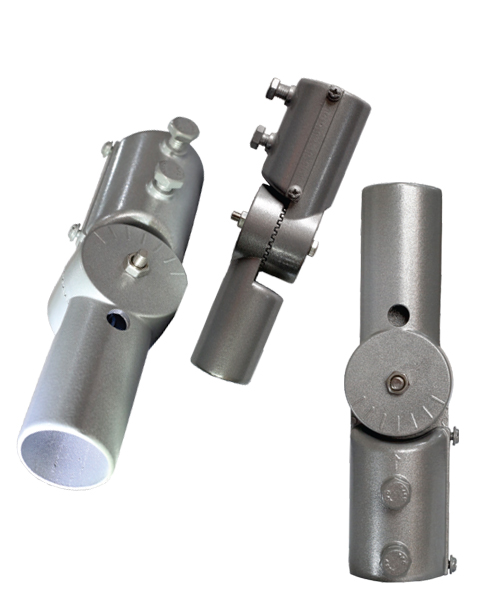

Street Light Pole Mounting adapters

	Overall Length	Adapter ID for Mounting pole	Adapter OD for street light pipe	Adjustable range
				Min.	Max.
Small	175mm	Dia 40mm	Dia 33mm	10 degrees	180 degrees
Big	210mm	Dia 55mm	Dia 45mm	10 degrees	180 degrees
